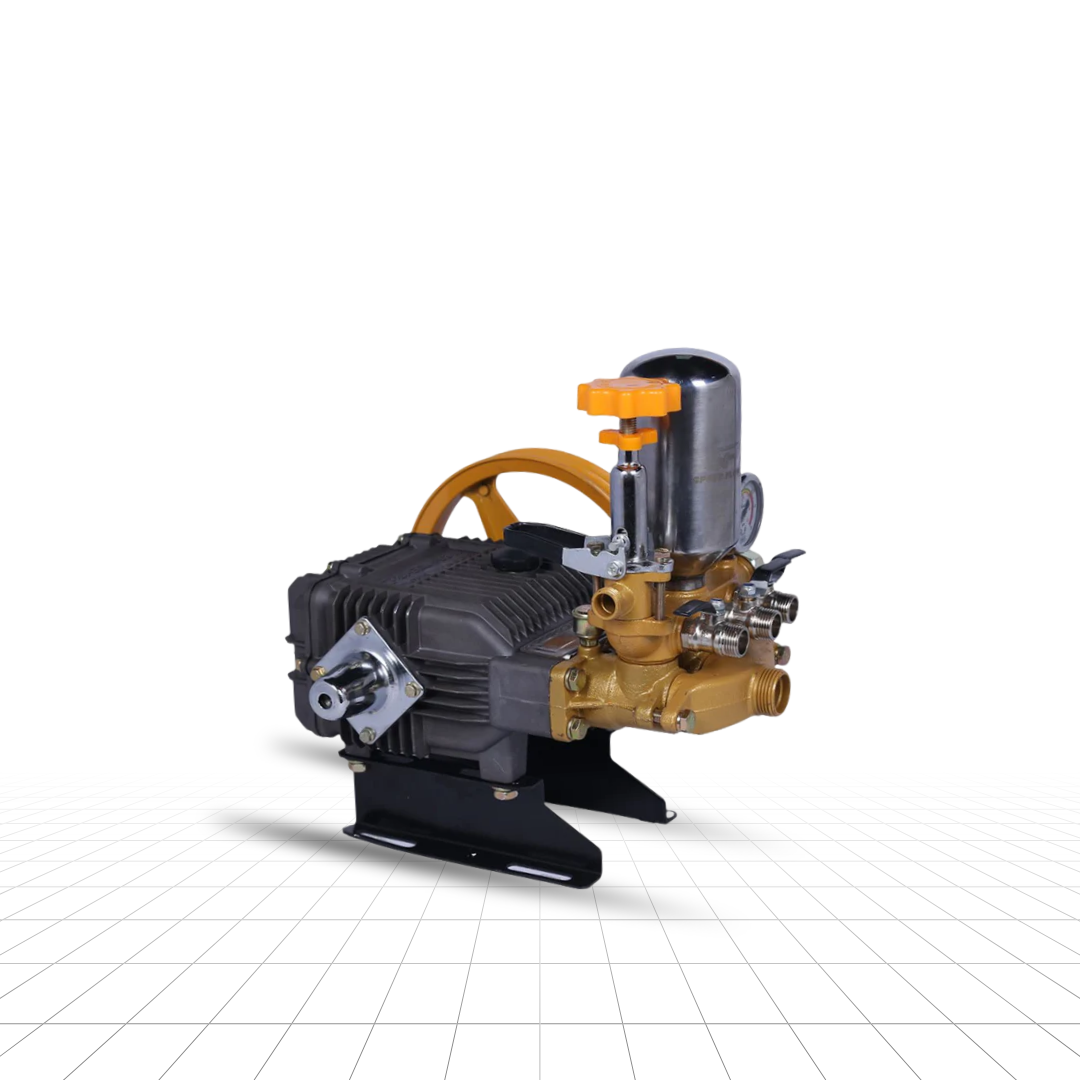

SF-100B3 HTP Sprayer

SF-100B3 HTP Sprayer

Regular price Rs. 6,385.00
Regular price Rs. 10,799.00 Sale price Rs. 6,385.00
41% OFF
Taxes included.
Quantity
  • Free Delivery
  • 10 Days Replacement
  • Assured Warranty

Specifications:

Plunger No DIA Stroke: 3×30×20 mm
Pressure: 0–40 kg/cm²
Suction Volume: 32–46 L/min
Engine Motor: 5.5–6.5 HP
Speed: 800–1200 rpm
Weight: 12.5 kg
Dimensions (L×W×H): 420 × 305 × 330 mm
Pulley size : 9” OR 4”(As per requirement)
No of cocks (output connections) : 3pc (½”)
Suitable hose pipe diameter : 10MM
Pump oil capacity : 1L (20W40)
Required motor : 3-5HP

Description

Description

This HTP Pump without Motor/Engine is a versatile and efficient solution for fluid transfer. Engineered for durability, it offers excellent performance without the weight of a built-in motor. Compatible with various power sources, this pump is ideal for industrial, agricultural, and commercial applications. It ensures smooth flow for liquids and viscous fluids, making it a valuable addition to any toolkit. Experience reliable fluid management with the HTP Pump today.

Features

  • 2-Outlets : Enables two-person simultaneous spraying for increased efficiency and productivity
  • High-Pressure Spraying : Delivers high-pressure spraying, perfect for orchards and challenging terrains
  • Durability : Lightweight, compact, yet sturdy and rugged
  • Features heavy-duty stainless steel piston for reliable performance
  • Versatile Use : Compatible with both engines and motors
  • Heavy-duty cast iron crankcase

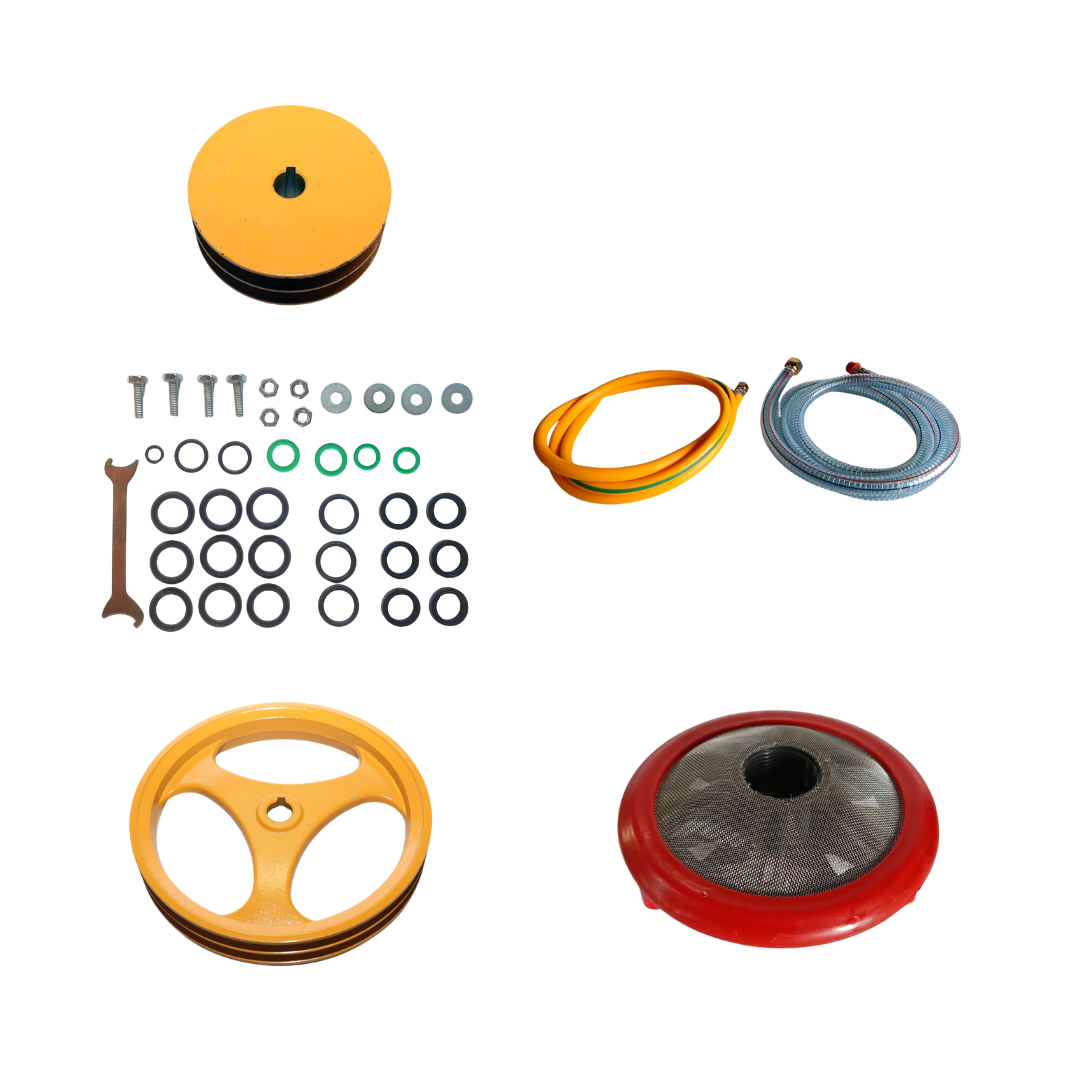

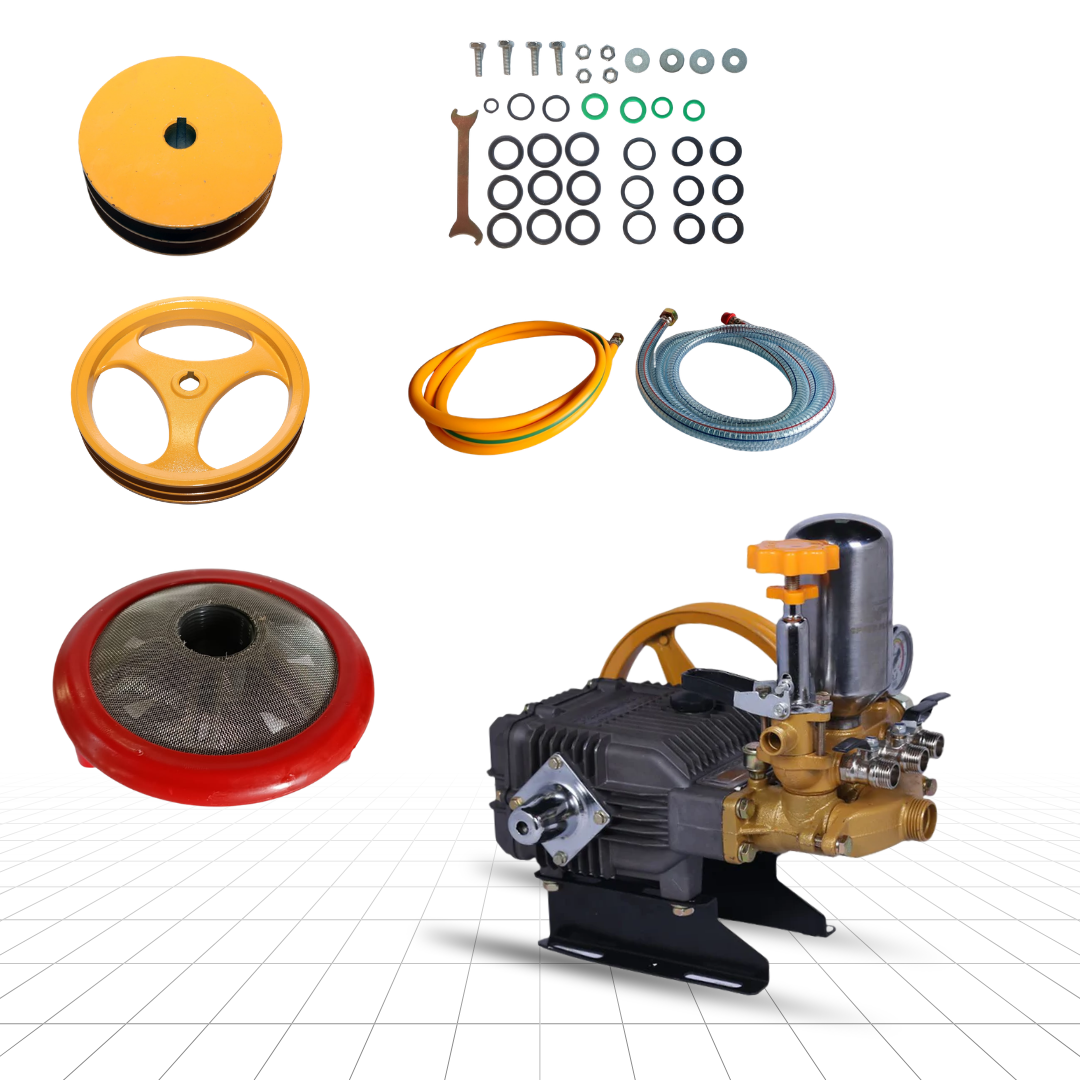

Accessories in the box

  • Suction hose pipe (2.5 mtr)
  • Overflow hose pipe
  • Pulley
  • Suction filter
  • Tools / Water Seal kit
  • User Manual

Applications

  • Vehicles (Cars, Bikes, etc.) Washing : Efficiently cleans vehicles with high-pressure water for a spotless finish
  • Agricultural Spraying : Ideal for applying pesticides and fertilizers across large agricultural areas effectively
  • Pressure Cleaning : Removes dirt and grime from various surfaces, enhancing cleanliness and appearance effortlessly.

Usage

  • Mount the motor with suitable engine or electric motor
  • Attach the inlet pipe, overflow pipe, and hose pipe
  • Connect with electricity if mounted with motor or pour the fuel in fuel tank and the engine oil in engine oil chamber accordingly and start the engine if mounted with an engine
